The following products are now stocked in our facility

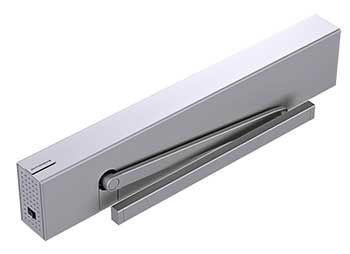

ED100LE Low Energy Swing Door Operator
The ED100LE Low Energy Swing Door Operator employs an innovative, and super-quiet, electromechanical drive that is a perfect solution for facilities who want a quick, quiet, and painless transition from manual doors to touch-free access such as commercial buildings, hospitals, schools, hotels and multifamily buildings.
- Onboard power supply for access control devices: 1.5 A @ 24 VDC
- Maximum door size: 48” wide
- Maximum recommended door weight: 400lbs.
- Operator weight: 26.58ibs.
- Standard operator dimensions: 27”W x 2-3/4”H x 5-1/8”D
- Non-handed
Part# ED100LE Operator Only
Part# ED100LE-COV27-CL Cover 27” for ED100LE, Clear Finish
Part# ED100LE-PUSH-ARM-CL Push Arm for ED100LE, Clear Finish
Part# ED100LE-PULL-ARM-CL Pull Arm for ED100LE, Clear Finish

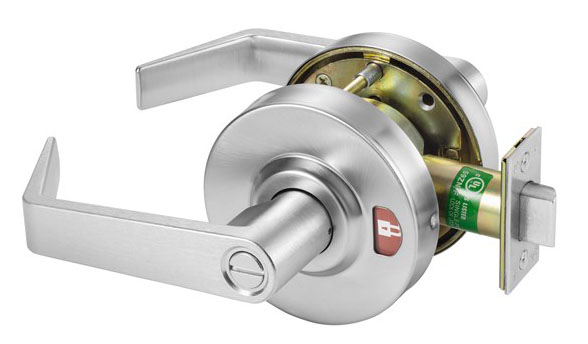

YPL Series Cylindrical Lock with Status Indicator
Eliminate potentially embarrassing situations and
provide peace of mind with the new YPL Series
cylindrical lock with status indicator.
With a visual
display of the occupancy status, the indicator
notifies individuals if the door is locked or unlocked,
providing an increased level of privacy.
- ANSI/BHMA Certified Grade 1
- UL/cUL listed for 3 hour doors
- ADA compliant
- Visual status indicators in rose, displaying bold visuals for vacant or occupied lock status
- Cylindrical lock construction provides durability and longevity
- 3-year mechanical warranty
Part#: YPL02-AU-626 Privacy Indicator Lever Lock

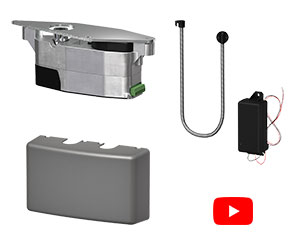

6440 Automatic Door Operator
The LCN 6400 COMPACT™ Series low-energy operator is a simple and
cost-effective solution that enables facilities to automate more openings
for touchless access and accessible operation.
The modular design is
unique and allows the reuse of an existing LCN 4040XP mechanical
closer.
The electrified module connects with a mounting plate and just
four screws and drives open the mechanical closer.
Part#: 6440-689 Automatic Door Operator (Module)

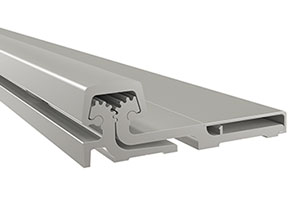

PemKonnect™ Modular Continuous Hinges
Modular hinges can ship in smaller packages due to their multi-piece design. With a 50% reduction in packaging from traditional continuous hinges, the PemKonnect™ modular hinge conveniently fits through doors, elevators, into vans or smaller vehicles; and now can be stored on shelves. So, carrying a continuous hinge around a jobsite or warehouse is a breeze. Smaller packaging also means less freight damage and a decrease in shipping costs.
- Hinge segments fit together easily
- No extra tools needed for assembly
- ANSI/BHMA A156.26 and UL Certified
- Meets building construction and fire code requirements
- Equal number of bearings as a traditional continuous hinge
- Supports the same weight requirements
- Can be cut in field
- Easily modified for custom lengths
- 83" hinges come in 2 hinge segments, net length 82.813"
